90%
Completion When Others Abandon
Satya Govind · Panvel
90% built in 60 days after the original vendor abandoned at 10%.
We finish what others can't complete.
Smart Car Parking Systems in Navi Mumbai
Smart Car Parking
Systems & Solutions
ACE Park System offers smart car parking solutions and automated parking systems for residential and commercial buildings, helping maximize available space and parking capacity.
- 90%
- Space utilisation
- 60
- Day installation
- 3,000 kg
- Per pallet
- 24 mo.
- Warranty
The problem we solve
India's parking infrastructure has one chronic problem: risk with no owner.
These problems are real and repeatable. AcePark exists to absorb them — not with a slogan, but with accountability across every project type.
Installation delays
Occupancy deadlines slip. Penalties follow.
Approval uncertainty
CC and OC paths stall entire projects.
Weight and structure limits
2-ton systems can't carry today's cars.
Vendor disappearance
Contracts taken. Sites abandoned mid-build.
The AcePark response
We own your parking outcome from parking layout through OC.
AcePark is not a parking vendor. We take accountability when others disappear. We finish when others abandon. We back everything with a 24-month warranty.
60-day installation
Assessment to handover. Backed by track record.
CC + OC parking layout management
Accurate parking planning and according to number of cars in CC.
3,000 kg per pallet
EV-ready. Premium cars supported.
Full ownership
24-month warranty. Risk transfers to us.
Every project. Same principle.
Four problems others created. Four outcomes we delivered.
100%
Structural Engineering Precision
Four-Level Facility
Failed system scrapped and rebuilt completely. Now operates flawlessly.
We complete and revive unfinished parking project abandoned by others.
CC
Municipal Approval Navigation
Mansoor Developers · Thane
CC approval secured when the approval path seemed blocked.
We own the entire project lifecycle including approvals.
Saved ₹50 Lakhs
Smart Design Under Constraint
Water Tank Installation
Three-level solution delivered at lower cost than the rotary option.
We engineer for real-world complexity.
Engineering advantage
Space engineering. Every square metre counts.
Our designs convert 90% of available width into usable pallet width — maximising efficiency without compromising safety. Conventional systems waste 20–30% of that space.
2400 mm available width→2160 mm pallet width→fits 1860 mm car
2600 mm available width→2340 mm pallet width→fits 2040 mm car
- ISO 9001:2015 certified — Design, manufacturing, installation and service.

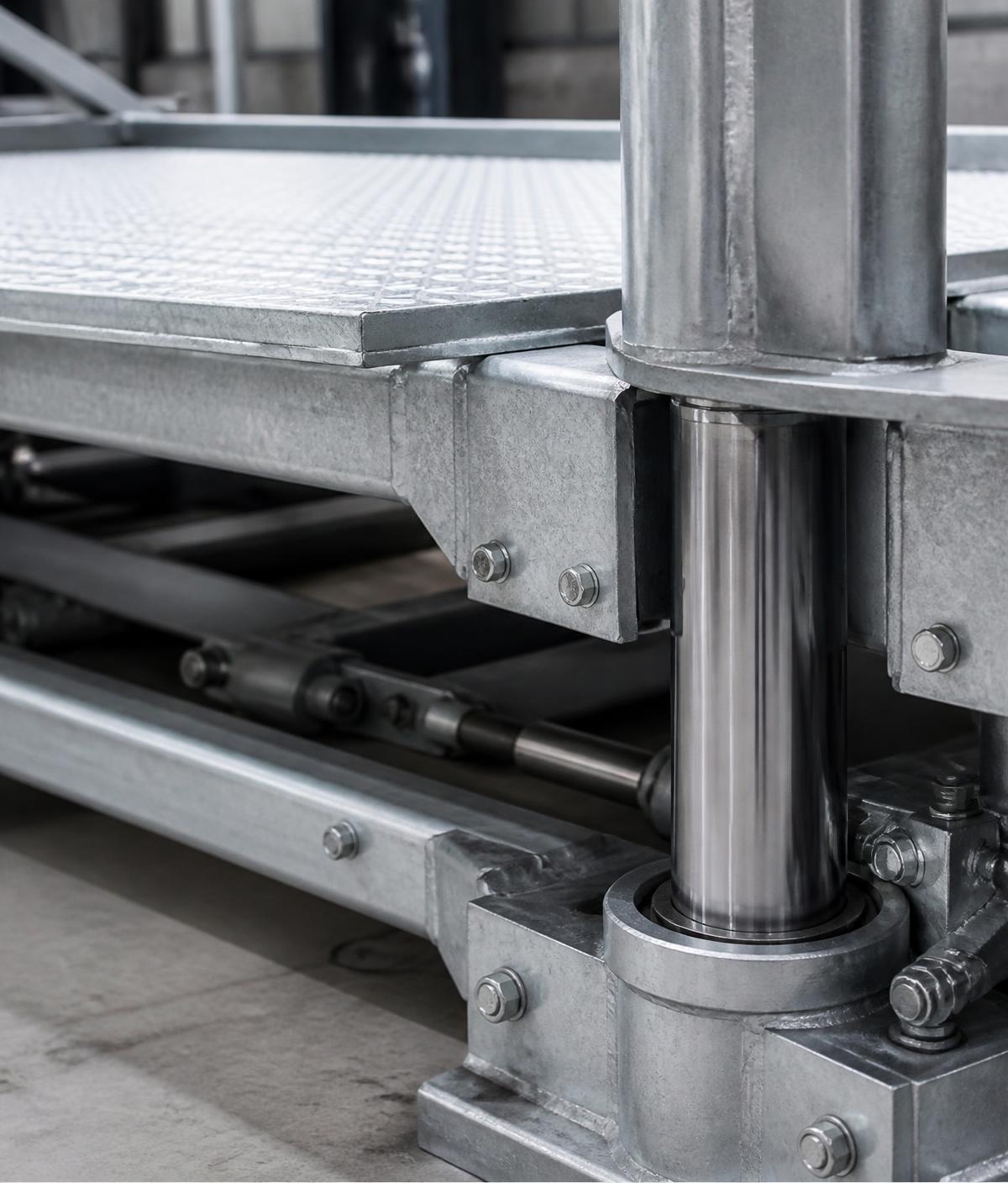

- Hot-dip galvanized platforms — Powder-coated steel. Anti-skid. Built-in drainage.
- Fail-safe hydraulic system — Zero-leak solenoid valve. Pallets cannot descend unintentionally.
Product range
Four models. One accountability principle.
Same 3,000 kg weight capacity across every model — different configurations for every site constraint.

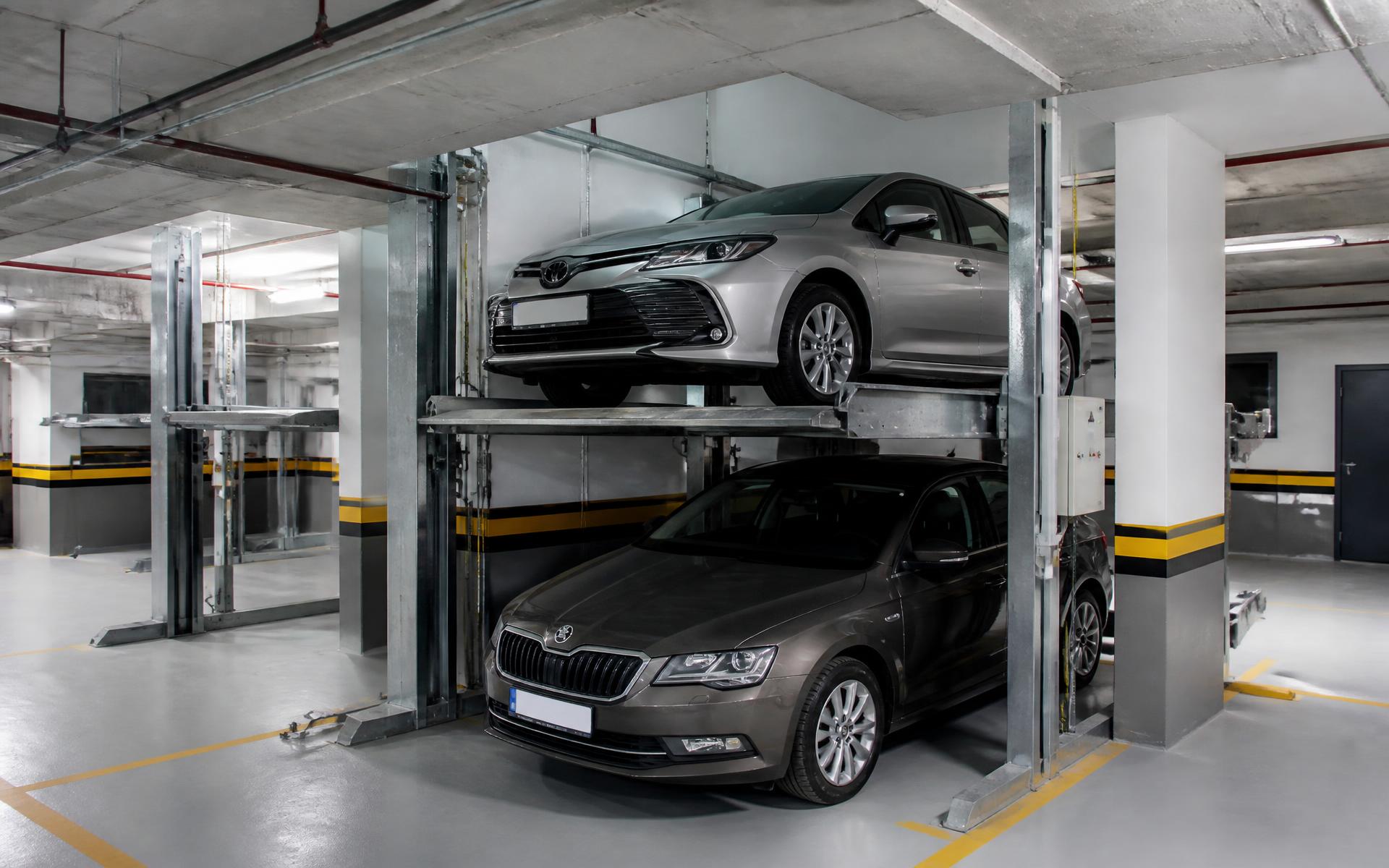

G+1 Configuration
Level 02
- Capacity
- 2 vehicles
- Weight
- 3,000 kg
- Footprint
- 5000 × 2500 mm
- Motor
- 3 HP / 2.3 kW
Small residential projects · 2-pole or 4-pole stack
Pit+1 Configuration
Level 02
- Capacity
- 2 vehicles
- Weight
- 3,000 kg
- Footprint
- 5000 × 2500 mm
- Motor
- 3 HP / 2.3 kW
Space-constrained sites · Independent or dependent

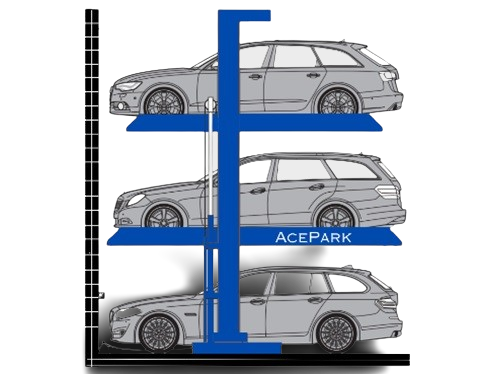

3-Level Configuration
Level 03
- Capacity
- 3 vehicles
- Weight
- 3,000 kg / level
- Footprint
- 5000 × 2500 mm
- Motor
- 3 HP / 2.2 kW
Medium residential and commercial · Multiple level combinations
4-Level Configuration
Level 04
- Capacity
- 4 vehicles
- Weight
- 3,000 kg / level
- Footprint
- 4500 × 2000 mm
- Motor
- 5 HP / 3.7 kW
Large commercial and institutional · Multiple level combinations
Proof of delivery
Five projects, Accountability.
Completed and operational
90% Built in 60 Days After the Vendor Vanished
Satya Govind · Panvel, Navi Mumbai
The original vendor completed 10% of the mechanical parking scope and disappeared. The developer carried the cost, the delay and the occupancy risk.
90%Built in 60 days
Completed and operational
A Failed System Scrapped and Rebuilt From Zero
Four-Level Facility Rebuild · Navi Mumbai
The builder's original vendor delivered a non-functional four-level system. Demolition costs and further delay were on the table.
100%Complete rebuild
Approved · Project unlocked
CC Approval Secured When the Path Seemed Blocked
Mansoor Developers · Thane
Municipal CC approval was uncertain and most vendors avoid the process entirely, leaving the developer to absorb the risk.
CCApproval secured
Budget met · Full capacity delivered
Three Levels Instead of a Rotary System. ₹50 Lakh Saved.
Parking Above a Water Tank · Navi Mumbai
The builder needed parking above an existing water tank. A competing vendor proposed an expensive rotary system.
₹50LSaved for the developer
The business case
Developers pay a premium because they transfer risk.
A 30–40% premium over standard vendors removes developer anxiety entirely: no parking delays, guaranteed EV compatibility, documented accountability.
| Specification | Standard vendor | AcePark |
|---|---|---|
| Weight capacity | 2,000 kg | Up to 3,000 kg |
| EV compatibility | Limited | Full |
| Premium cars | Restricted | Supported |
| Installation timeline | ~150 days | 60 days |
| Municipal approval support | None | CC + OC managed end to end |
| Warranty | 12-month basic | 24 months, standard |
| Where risk sits | With the developer | Transferred to AcePark |
60-day delivery
Sixty days reclaimed from your project timeline.
Standard vendors average 150 days from assessment to handover. AcePark delivers in 60 — speed backed by precision, with no shortcuts and no quality loss.
Day 1–15
Site assessment
Structural survey, layout
Day 16–50
Installation complete
Fabrication, Erection, Hydraulics
Day 51–59
Commissioning
Load testing, safety interlocks, operator training
Day 60
Handover
Documentation, warranty activation
60 Days
Occupancy deadline met
24 Months
Post-handover warranty
500+ cars safely parked
Delivered and accountable
Your parking problem is our responsibility now.
We have solved this before. We will solve it again. Book a site assessment and we will return a layout, an approval path and a fixed 60-day plan.
